CASE-OP003 · Lateral Movement Between Workstations

Case	CASE-OP003 (purple-team operation OP-003)
Dates	2026-09-28 to 2026-09-29
Status	Closed: recovered and negative-validated
Hosts	Foothold WIN11-OPS01 (10.10.2.9) → target Win10 (10.10.2.4)
Account	soc\labuser (test domain account whose password the lab controls)
Classification	Authorized emulation. No credentials were dumped.

1. Bottom line up front

From a compromised workstation, an intruder used valid domain credentials to log on to a second workstation in the same network zone. The logon raised no alert: the lab's lateral-movement rule only watched for logons coming from the attacker network, and this one came from a trusted peer. However, the intruder could not run anything on the second machine: its host firewall, disabled WinRM and Windows' remote token filtering blocked execution. So this was a detection gap but a prevention success. Top recommendation: alert on workstation-to-workstation logons, which became OP-004 D2.

Master timeline: a detection blind spot between two prevention wins. Click to zoom.

2. Disposition

• Verdict: True positive (authorized emulation)
• Severity: Medium. The logon succeeded, but no code ran on the target.
• Confidence: High. The Windows 4624 event is in the archive index, the lateral-movement rule 99920 stayed at 0, and execution was confirmed blocked.
• ATT&CK: Lateral Movement T1021.002 · Valid Accounts T1078 · Use Alternate Authentication Material T1550.002 (tested in PB-015)

3. What happened

• Who: soc\labuser, a valid domain account
• What: network logon (type 3) from one workstation to another over SMB
• Where: WIN11-OPS01 → Win10, both in the TARGET zone
• When: 2026-09-28 13:39:17 UTC (the logon)
• How: net use \\10.10.2.4\IPC$ with valid credentials
• Why (assessed): spreading from a foothold to a second host

4. Timeline

Time (UTC)	Step	What the SOC saw	Outcome
2026-09-28	SMB from WIN11-OPS01 to Win10 port 445	Connection refused: Win10's host firewall blocks peer SMB by default	🟦
2026-09-28	A temporary, logged firewall rule opened (test only)	n/a	n/a
2026-09-28 13:39:17	net use \\10.10.2.4\IPC$ as labuser	Event 4624, type 3, source 10.10.2.9, in the archive only. 99920 = 0; alerts L12+ = 0	🟥
2026-09-28/29	Remote execution attempted as a local admin (op003_admin)	WinRM off; local-account token filtering removes admin rights over the network	🟦

5. Scope

• Affected: a single logon session on Win10; nothing executed.
• Not affected: the domain controller (explicitly out of scope), other hosts. No credential dumping or LSASS access.

6. Evidence and queries

The comparison that proves the gap:

Same SMB logon, from…	Wazuh 99920
The ATTACK zone (PB-013, PB-015, PB-016)	🟩 Level 14 alert
A TARGET-zone peer (this case)	🟥 Nothing

Only the source network changed, and the alert went from level 14 to nothing.

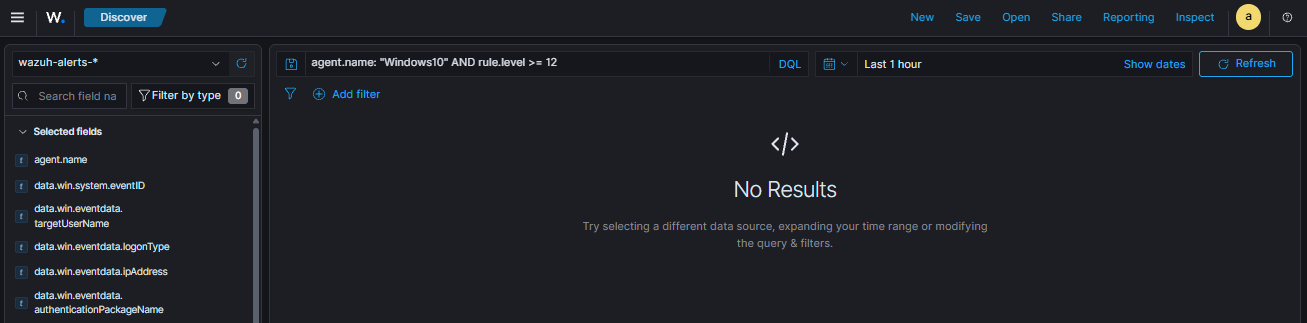

No alert: rule 99920 and every level-12+ rule stayed at zero.

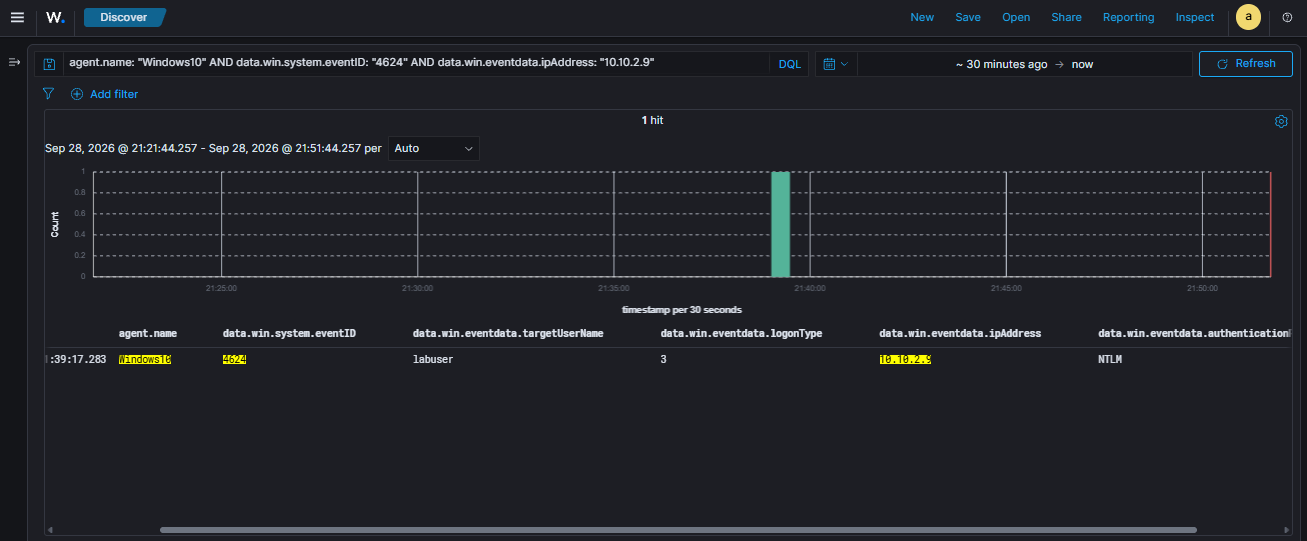

But it was logged: Event 4624, type 3, from the peer workstation, in the archive index.

The detection built afterward (D2, Splunk):

index=wazuh_archives "EventChannel"
| rex field=_raw "EventChannel (?<_json>\{.*\})$"
| spath input=_json
| rex field=_raw "\((?<agent_name>[^)]+)\)\s+any->EventChannel"
| rename "win.system.eventID" as eventID, "win.eventdata.logonType" as logonType,
         "win.eventdata.ipAddress" as srcip, "win.eventdata.targetUserName" as targetUser
| search eventID=4624 (logonType=3 OR logonType=10)
| where (agent_name="Windows10" OR agent_name="WIN11-OPS01")
| eval own_ip=case(agent_name=="Windows10","10.10.2.4", agent_name=="WIN11-OPS01","10.10.2.9", true(),"none")
| where match(srcip,"^10\.10\.2\.(4|9)$") AND srcip!=own_ip

Run over the existing data, it returns exactly one row: this hop. Across 7 days there were 8,864 network/RDP logons: 4,028 loopback and 4,835 to the domain controller, both excluded, and this one.

Every network logon in the 7 days, sorted: only the OP-003 hop is workstation → workstation.

7. Response

• Containment: not needed (no execution). In production: reset the account's password and check where else it has logged on.
• Recovery: temporary firewall rule and the op003_admin account removed; SMB session dropped. No token-filtering setting was ever changed.
• Negative validation: Test-NetConnection 10.10.2.4 -Port 445 returns False again.

8. Detection gaps and what happened to them

Gap	Fix	Status
Lateral movement alert only watches the attacker network	D2: alert on any network or RDP logon between two workstations	✅ OP-004, Detections
No "first time this account logged on to this host" check	Baseline account-to-host pairs and alert on new ones	Backlog (D2 v2)
Hard-coded workstation list in D2 (WIN11-PB026 is missing)	Replace with a maintained workstation lookup	Backlog

9. Analyst notes

• Logging on is not the same as running code. The hop succeeded at the authentication layer and failed at execution, and both facts are in the report.
• Checking a guess: I first thought RPC (port 135) was blocked. Testing showed it was open, so that explanation was dropped before it reached the report.
• Safety: test accounts stood in for stolen credentials; no credential dumping and no contact with the domain controller.
